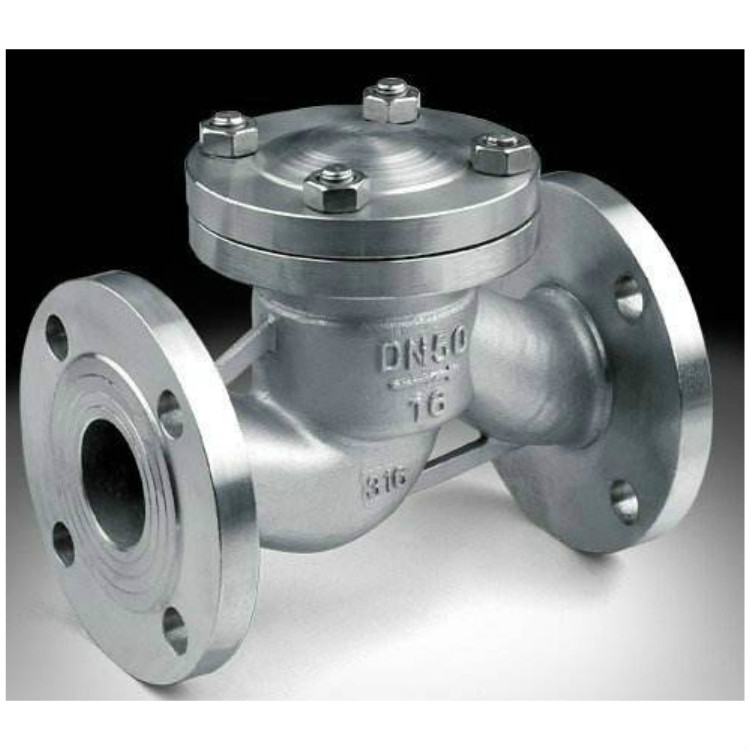

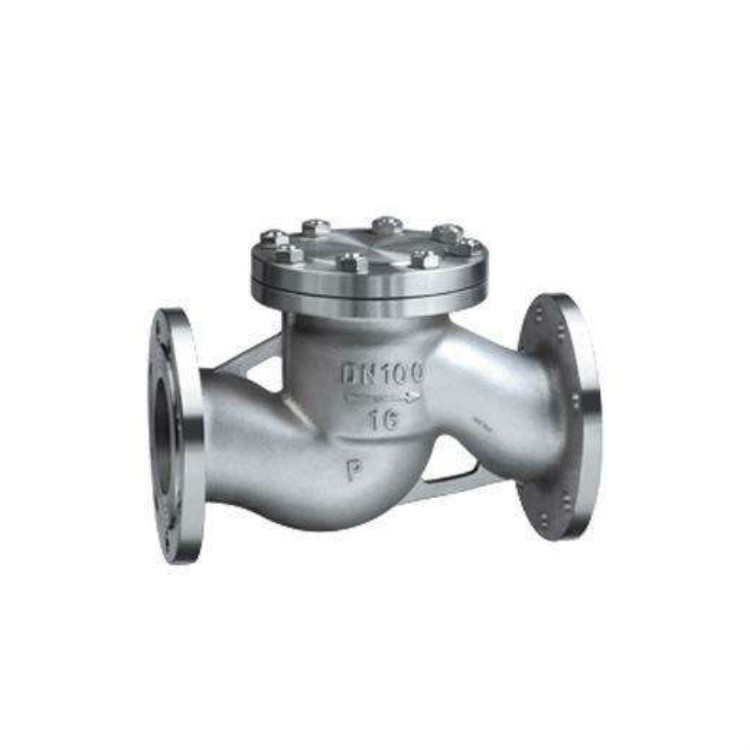

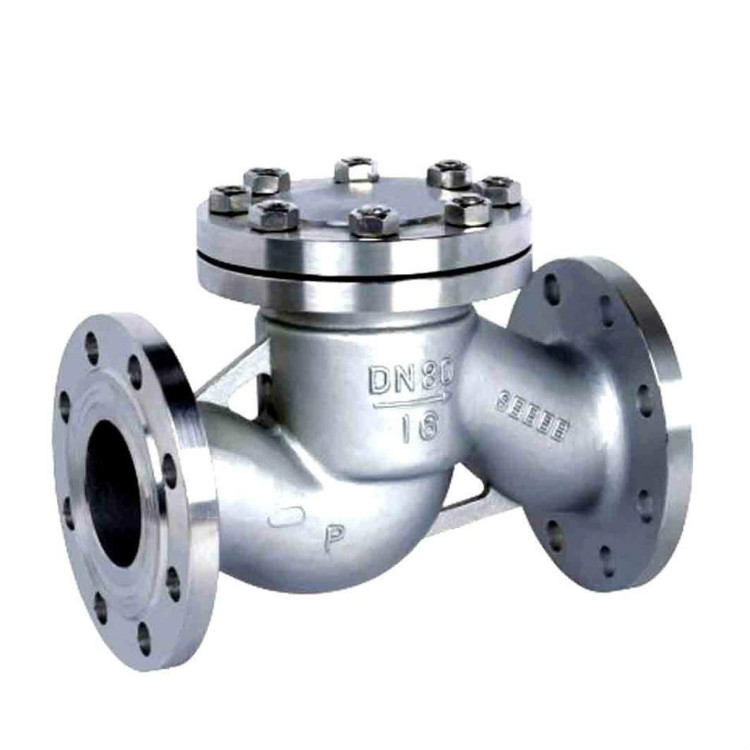

不锈钢阀门-止回阀主要零件材质 | 零件名称 Part Name | ZG1Cr18Ni9T
304 CF8 | ZGOOCr18Ni10
304L CF3 | ZG1Cr18Ni12Mo
2Ti316 CF8M | zgoocR17nI14mO2
316L CF3M | WCB | | 阀体/阀盖 Body/Cap | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | WCB | | 阀瓣 Valve Piece | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 | | 垫片Gasket | 304+PTFE | 304L+PTFE | 316+PTFE | 316+PTFE | 石墨+304 | | 螺栓 Bolt | 不锈钢 Stainless Steel | 35GrMoA | | 螺母 Nut | 不锈钢 Stainless Steel | 45 |
不锈钢阀门主要连接尺寸 | 公称压力 (MPA) | 公称通径DN(mm) | 尺寸(mm) | 公称压力(MPA) | 公称通径DN(mm) | 尺寸(mm) | | L | H | L | H | | H41W-1.6 | 15 | 130 | 90 | H41W-4.0 | 15 | 130 | 90 | | 20 | 150 | 105 | 20 | 150 | 105 | | 25 | 160 | 115 | 25 | 160 | 115 | | 32 | 180 | 120 | 32 | 180 | 120 | | 40 | 200 | 135 | 40 | 200 | 135 | | 50 | 230 | 140 | 50 | 230 | 140 | | 65 | 290 | 150 | 65 | 290 | 150 | | 80 | 310 | 160 | 80 | 310 | 160 | | 100 | 350 | 175 | 100 | 350 | 175 | | 125 | 400 | 195 | 125 | 400 | 195 | | 150 | 480 | 225 | 150 | 480 | 225 | | 200 | 600 | 250 | 200 | 600 | 250 | | 250 | 650 | 270 | 250 | 650 | 270 | | 300 | 750 | 290 | 300 | 750 | 300 | | H41W-2.5 | 15 | 130 | 90 | H41W-6.4 | 20 | 190 | 110 | | 20 | 150 | 105 | 25 | 210 | 125 | | 25 | 160 | 115 | 32 | 230 | 152 | | 32 | 180 | 120 | 40 | 260 | 168 | | 40 | 200 | 135 | 50 | 300 | 170 | | 50 | 230 | 140 | 65 | 340 | 188 | | 65 | 290 | 150 | 80 | 380 | 205 | | 80 | 310 | 160 | 100 | 430 | 230 | | 100 | 350 | 175 | 125 | 500 | 280 | | 125 | 400 | 195 | 150 | 550 | 300 | | 150 | 480 | 225 | 200 | 650 | 350 | | 200 | 600 | 250 | | | | | 250 | 650 | 270 | | |
